Thin Metal Plate Hears 3 Frequencies at Once

For the first time, a single thin metal plate can listen to three different frequencies at once and route each one to its own destination.

Researchers at South Korea's Pohang University of Science and Technology just published their breakthrough in Nature Communications. Led by Professor Junsuk Rho, the team created what they call a "frequency-multiplexed elastic metasurface" that works like a prism for vibrations.

Until now, wave-controlling devices worked like old-fashioned radios. You could tune into one frequency at a time, but switching channels meant using a completely different device. This limitation has frustrated engineers trying to inspect buildings, bridges, and machinery for hidden damage.

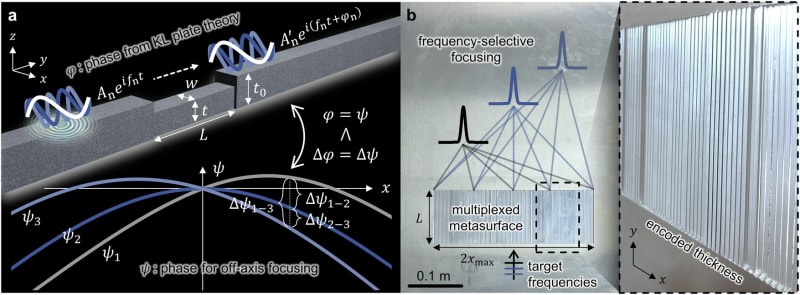

The solution turned out to be surprisingly elegant. The team discovered that by carefully varying the thickness of a metal plate, they could make different frequencies behave in completely different ways. When they tested their design with elastic waves at 40 kHz, 60 kHz, and 80 kHz, each frequency focused on a different spot on the plate.

The results exceeded expectations. By placing sensors at each focal point, the team amplified the target frequency signal by 48 times compared to other frequencies. That's like turning up the volume on one radio station while automatically silencing all the others.

The Ripple Effect

This technology combines jobs that previously required multiple expensive devices and complex systems. Wave control, frequency separation, spatial routing, and electrical signal conversion now happen in one affordable metal plate.

Industries that inspect structures without damaging them stand to benefit immediately. Instead of using separate equipment for each frequency, inspectors could carry a single lightweight device that checks multiple aspects of structural health simultaneously.

Defense applications, energy systems, and sensor technology could all tap into this innovation. Professor Rho calls it "a technological turning point that breaks the conventional belief that one structure can perform only one function."

The beauty lies in what engineers call elegant simplicity. No moving parts, no complex electronics, no expensive materials. Just a carefully designed metal plate that bends the rules of what single devices can do.

"Without the need for expensive equipment, this platform enables frequency-selective detection and amplification of structural vibrations," Rho explained. His team essentially taught a piece of metal to multitask.

The technology proves that sometimes the biggest breakthroughs come from questioning the most basic assumptions about how things must work.
