One-Legged Robot Hops Across Ice and Sand Like a Bird

A one-legged robot that hops like a bird just learned to navigate ice and sand, opening up terrain that stops most robots in their tracks.

Meet the Hopcopter, a drone perched on a spring-loaded foot that bounces from place to place instead of flying constantly. Engineers at the University of Toronto designed it to mimic how birds conserve energy by perching and hopping rather than staying airborne all the time.

The original design worked great on flat concrete and gravel, but hit major roadblocks. On ice, the foot would slip and the robot would topple over. On sand, it would sink down and get stuck, unable to take off again.

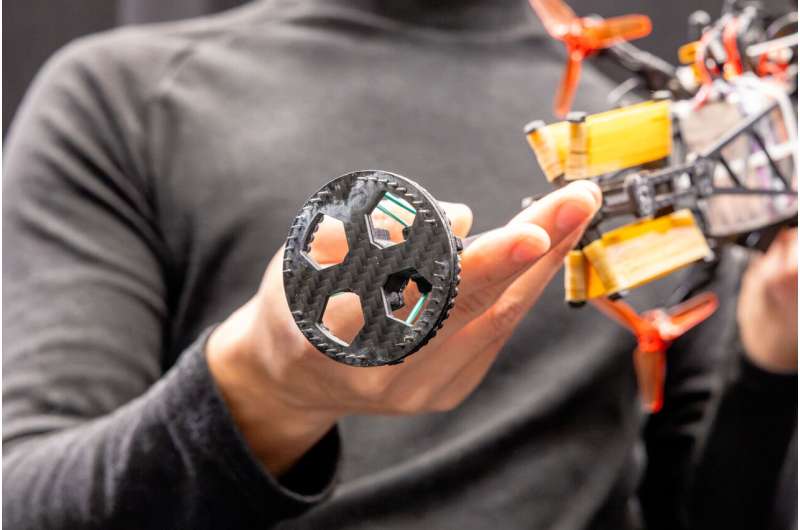

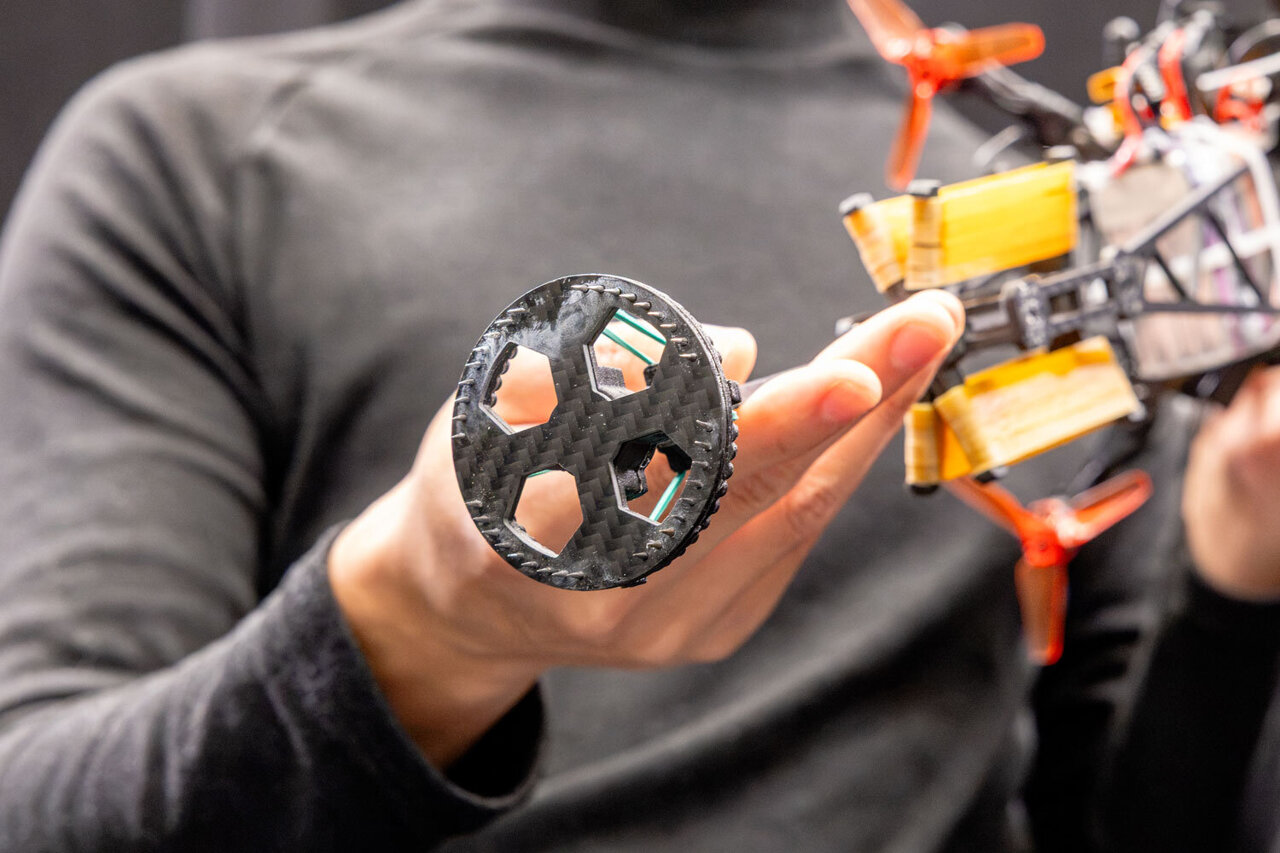

Ph.D. student Jeeraphat Kledkruemas solved both problems with a clever redesign. His new foot pad spreads the robot's weight over a larger area, just like snowshoes keep hikers from sinking into deep snow. A spherical joint lets the foot tilt in any direction to match uneven ground, while rubber bands snap it back into position after each hop.

Short spikes on the bottom grip slippery surfaces like ice climber crampons. The upgrades work remarkably well, reducing takeoff errors by 66% and boosting efficiency by 64%.

The improvements mean the Hopcopter now performs almost identically across different terrains. Where it used to struggle on challenging surfaces, it now hops with 84% less variation between easy and difficult ground.

Professor Pakpong Chirarattananon, who leads the research team, sees the Hopcopter filling a crucial gap between drones and ground robots. Drones can fly anywhere but can't carry much weight or travel far. Wheeled and legged robots handle heavy cargo but struggle with rough terrain and cost much more to build.

The Hopcopter offers a middle path. It carries more weight than standard drones while easily bounding over obstacles that would stop wheeled robots. The hopping motion conserves energy compared to constant flight, extending its range for missions.

The Ripple Effect

This isn't just about a quirky robot design. The Hopcopter could reach disaster zones where rubble stops wheeled robots and weather grounds flying drones. It could inspect remote infrastructure in extreme conditions, from icy pipelines to desert solar farms.

The team even imagines it exploring other planets, where its ability to adapt to unpredictable terrain could prove invaluable. The next step is teaching it to navigate autonomously, preparing it for real-world missions beyond the lab.

Nature-inspired engineering keeps proving its worth, one hop at a time.
