Finnish Team Builds Battery That Stores Power in Sand

Scientists just proved you can store electricity in one of Earth's most abundant materials: sand.

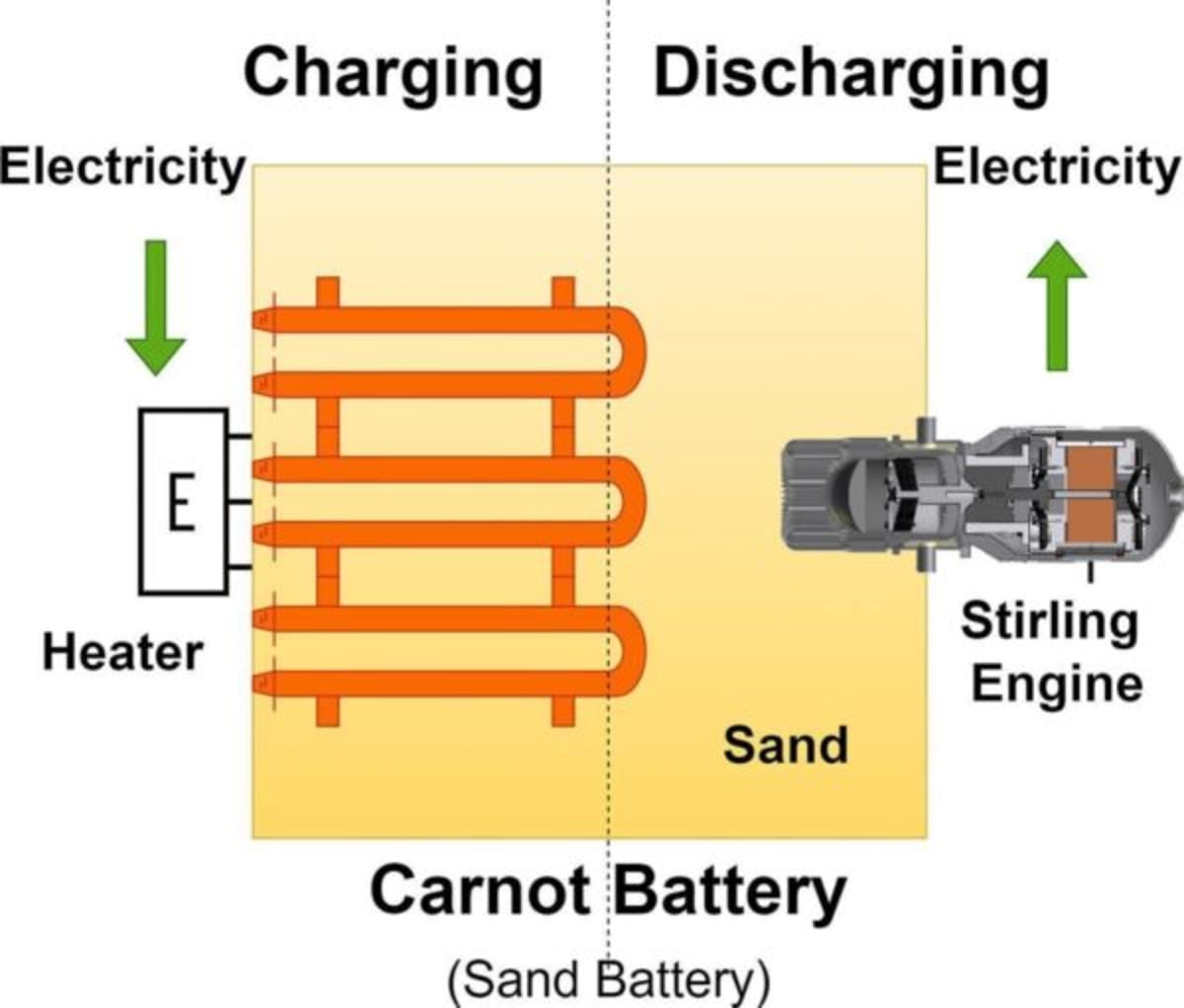

A team at Finland's Aalto University successfully built and tested a prototype battery that stores energy as heat in regular brown sand, then converts that heat back to electricity when needed. The system works like a thermal piggy bank for power grids struggling to store renewable energy.

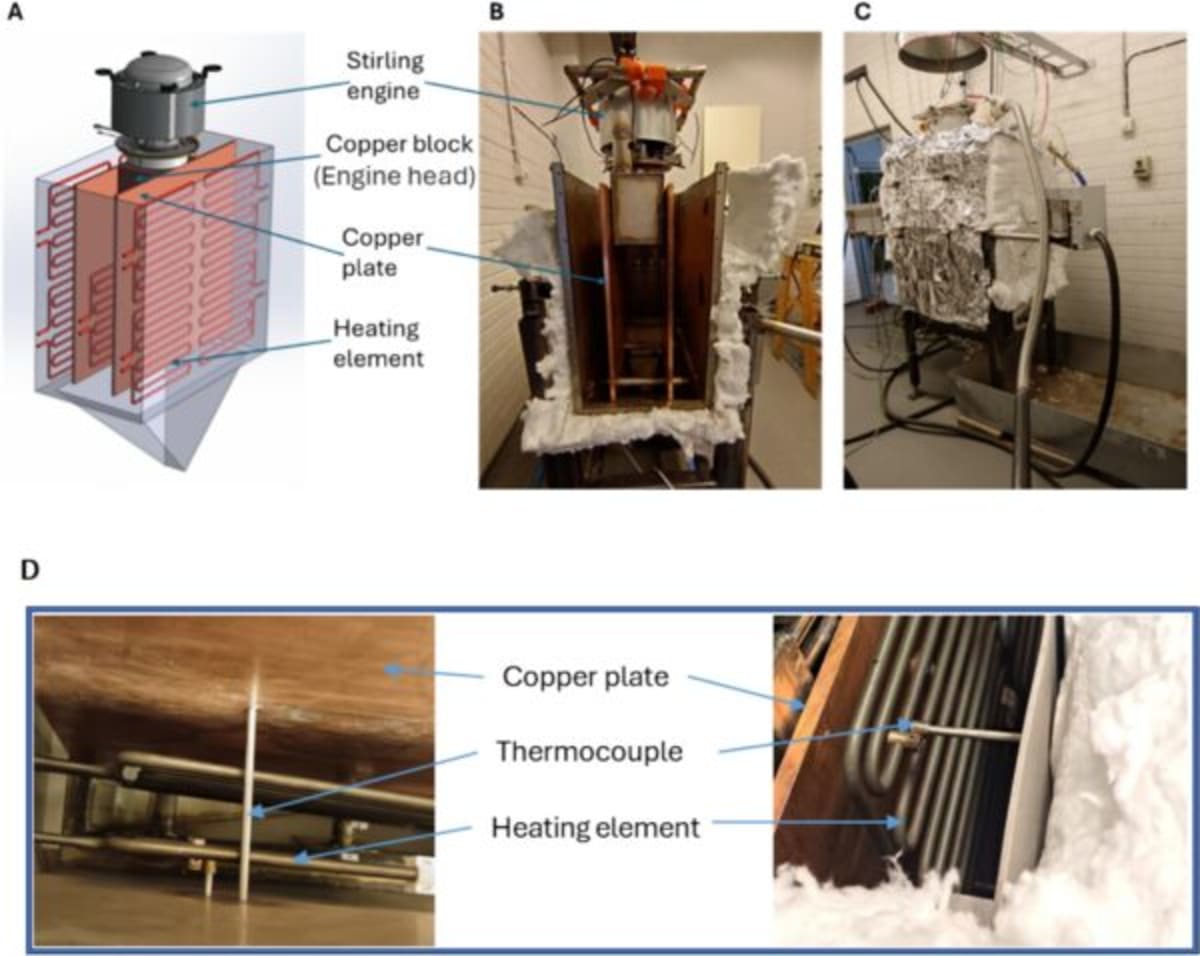

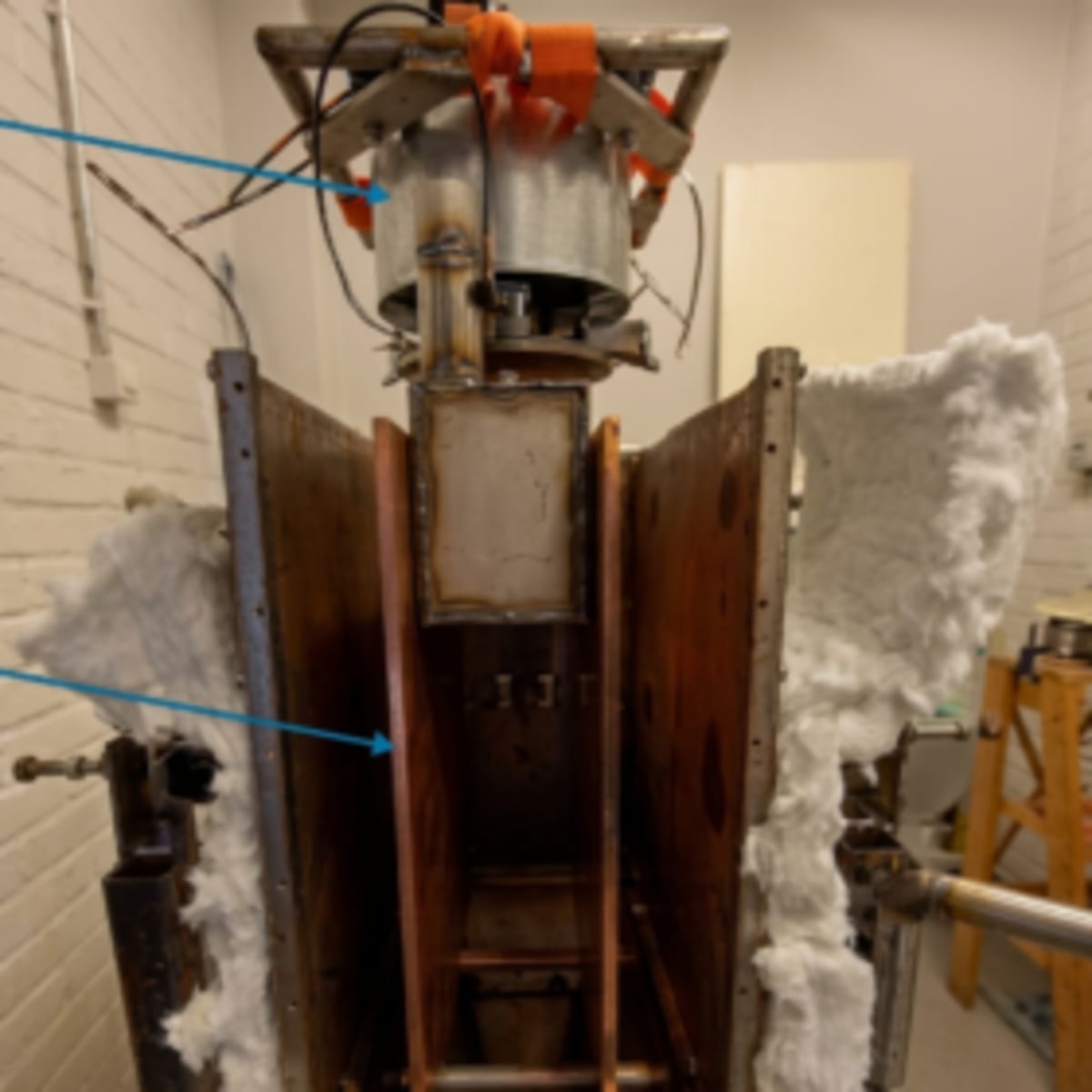

The prototype uses a 0.2 cubic meter tank filled with silica sand, the kind you might find on a beach. Electric heaters warm the sand up to 350 degrees Celsius during charging. When electricity is needed, a Stirling engine pulls heat from the sand through copper plates and converts it to power.

The team ran the system at two temperature settings. At 350 degrees Celsius, it produced 690 watts of power and ran for 14 hours on a single charge. That's enough to power a laptop continuously for more than half a day from a relatively small box of heated sand.

Current efficiency sits between 6.8% and 8.3%, which sounds low compared to lithium batteries. But this is a first prototype using inexpensive materials, and the researchers identified exactly where energy is escaping: mainly through heat leaking to the surroundings rather than problems with the sand itself.

Computer models show the design could reach 19% to 31% efficiency with better insulation and reduced heat loss. That would make sand batteries competitive for grid storage, especially since sand costs almost nothing compared to the rare metals in conventional batteries.

The Ripple Effect: Sand batteries could transform renewable energy storage in places where lithium and other battery materials are expensive or scarce. Wind and solar farms generate power inconsistently, so affordable storage helps communities use clean energy even when the sun isn't shining or wind isn't blowing. The Finnish team's earlier sand battery project already provides heat to a local district heating system, and this experiment proves the concept can work for electricity too.

The researchers published detailed measurements so other teams worldwide can build on their work. They've created a roadmap showing exactly which improvements would have the biggest impact on efficiency.

Sand is already being used for thermal storage in some locations, but converting that stored heat back to electricity remained largely theoretical until now.

This successful test moves the technology from "interesting idea" to "proven concept that needs refinement."
